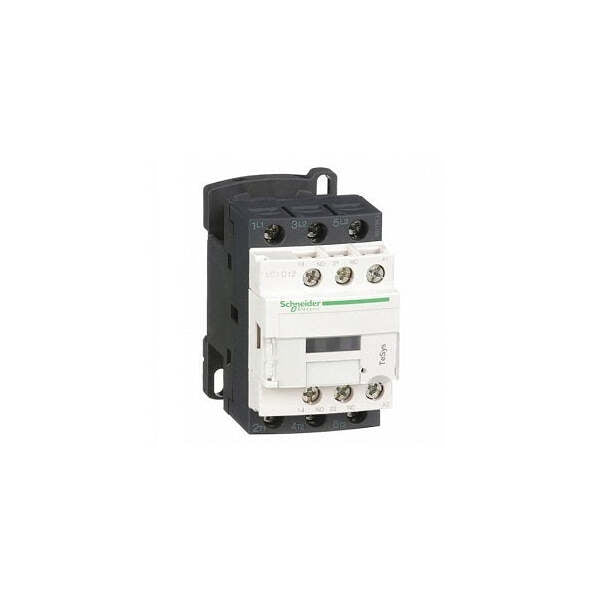

Schneider Electric LC1D12Q7 TeSys contactor with the electrical and motor ratings stored in this listing.
- Model: LC1D12Q7
- Coil voltage: 380VAC (50/60Hz)
- Configuration: Non-reversing, 3 pole
- Current rating: 12 A
- Motor rating: 5.5 kW at 400 V; 7.5 HP at 480 V
- TeSys reference: 034932
Use the model, coil voltage, and TeSys reference to confirm suitability for the intended application.
