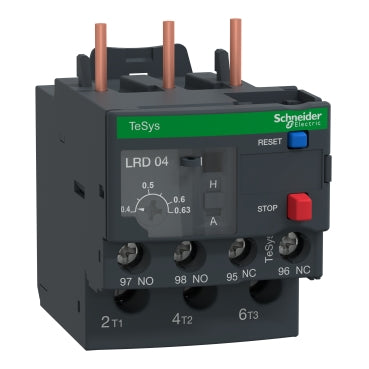

Schneider Electric LRD04 thermal overload relay with an adjustable current range of 0.4–0.63 A for motor protection.
Key features
- Class 10A thermal overload protection with phase-loss sensitivity.
- One normally open and one normally closed auxiliary contact for trip signaling.
- Test function, stop/reset controls, and trip indicator.
- Direct mounting to compatible TeSys contactors.
Technical specifications
- Brand: Schneider Electric
- Manufacturer part number: LRD04
- Series: TeSys Deca / TeSys LRD
- Product type: Differential thermal overload relay
- Current adjustment range: 0.4–0.63 A
- Trip class: 10A
- Auxiliary contacts: 1NO + 1NC
- Reset: Manual or automatic
- Terminals: Screw clamp
- Compatible contactors: LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38
- UPC: 785901206712
- GTIN / EAN: 3389110346749
